Pengantar:
Pompa air limbah bawah laut YW yang tidak tersumbat adalah pompa generasi baru yang dikembangkan dengan teknologi canggih di pasar universal.
Ini adalah pompa air limbah yang ideal untuk mengeluarkan cairan dengan partikel padat dan limbah serat panjang.
Keuntungan:
Menghemat energi, anti-membungkus, tidak menghalangi, pemasangan otomatis dan kontrol otomatis.
Fitur:
1. Desain model hidrolik anti penyumbatan saluran besar.
2. kapasitas besar kotoran-discharged, dapat melepaskan serat yang panjangnya 5 kali panjang diameter pompa, dan slos partikel padat yang diameternya 50% dari pompa.
3Desain dan motor yang cocok.
4. double-channel series seal. materialnya adalah tungsten carbide tahan aus. pompa dapat beroperasi selama lebih dari 8000 jam.
Aplikasi:
1Air limbah industri dan air limbah kota dengan partikel dan serat.
2Hujan, pasokan air.
3Banyak industri seperti pabrik baja, pembangkit listrik, tambang batubara, rumah sakit, kotamadya, kimia, farmasi, bangunan, hotel, restoran, drainase, air laut.
4Proses kimia.
Kondisi kerja:
1. Suhu rata-rata ≤ 60°C. Densitas 1 - 1,3 kg/m3.
2Pompa yang terbuat dari stainless steel dapat bekerja dengan media korosif umum.
3Suhu lingkungan ≤ 60°C.Kelembaban ≤95%.Ketinggian ≤ 1000 meter.
Model
| Tidak, tidak. | Model | Ukurannya ((mm) | Aliran ((m3/jam) | Kepala (m) | Kecepatan (r/menit) | Kekuatan ((kw) | efisiensi(%) | pengontrol | pemotongan |
| 1 | 25YW8-22-1.1 | 25 | 8 | 22 | 2825 | 1.1 | 38.1 | qzd-1.1 | / |
| 2 | 32YW12-15-1.1 | 32 | 12 | 15 | 2825 | 1.1 | 40 | qzd-1.1 | / |
| 3 | 40YW15-15-1.5 | 40 | 15 | 15 | 2840 | 1.5 | 45.1 | qzd-1.5 | 40 |
| 4 | 40YW15-30-2.2 | 40 | 15 | 30 | 2840 | 2.2 | 18 | qzd-2.2 | 40 |
| 5 | 50YW20-7-0.75 | 50 | 20 | 7 | 1390 | 0.75 | 54 | qzd-0.75 | 40 |
| 6 | 50YW10-10-0.75 | 50 | 10 | 10 | 1390 | 0.75 | 56 | qzd-0.75 | 50 |
| 7 | 50YW20-15-1.5 | 50 | 20 | 15 | 2840 | 1.5 | 55 | qzd-1.5 | 50 |
| 8 | 50YW15-25-2.2 | 50 | 15 | 25 | 2840 | 2.2 | 56 | qzd-2.2 | 50 |
| 9 | 50YW18-30-3 | 50 | 18 | 30 | 2880 | 3.0 | 58 | qzd-3.0 | 50 |
| 10 | 50YW25-32-5.5 | 50 | 25 | 32 | 2900 | 5.5 | 53 | QZD-5.5 | 50 |
| 11 | 50YW20-40-7.5 | 50 | 20 | 40 | 2900 | 7.5 | 55 | qzd-7.5 | 50 |
| 12 | 65YW25-15-2.2 | 65 | 25 | 15 | 2840 | 2.2 | 52 | qzd-2.2 | 50 |
| 13 | 65YW37-13-3 | 65 | 37 | 13 | 2880 | 3.0 | 55 | qzd-3.0 | 65 |
| 14 | 65YW25-30-4 | 65 | 25 | 30 | 2890 | 4.0 | 58 | qzd-4.0 | 65 |
| 15 | 65YW30-40-7.5 | 65 | 30 | 40 | 2900 | 7.5 | 56 | qzd-7.5 | 65 |
| 16 | 65YW35-50-11 | 65 | 35 | 50 | 2930 | 11 | 60 | qzd-11 | 65 |
| 17 | 65YW35-60-15 | 65 | 35 | 60 | 2930 | 15 | 63 | qzd-15 | 65 |
| 18 | 80YW40-7-2.2 | 80 | 40 | 7 | 1420 | 2.2 | 52 | qzd-2.2 | 65 |
| 19 | 80YW43-13-3 | 80 | 43 | 13 | 2880 | 3.0 | 50 | qzd-3.0 | 80 |
| 20 | 80YW40-15-4 | 80 | 40 | 15 | 2890 | 4.0 | 57 | qzd-4.0 | 80 |
| 21 | 80YW65-25-7.5 | 80 | 65 | 25 | 2900 | 7.5 | 56 | qzd-7.5 | 80 |
| 22 | 100YW80-10-4 | 100 | 80 | 10 | 1440 | 4.0 | 62 | qzd-4.0 | 80 |
| 23 | 100YW110-10-5.5 | 100 | 110 | 10 | 1440 | 5.5 | 66 | QZD-5.5 | 100 |
| 24 | 100YW100-15-7.5 | 100 | 100 | 15 | 1440 | 7.5 | 67 | qzd-7.5 | 100 |
| 25 | 100YW85-20-7.5 | 100 | 85 | 20 | 1400 | 7.5 | 68 | qzd-7.5 | 100 |
| 26 | 100YW100-25-11 | 100 | 100 | 25 | 1460 | 11 | 65 | Jj1-11 | 100 |
| 27 | 100YW100-30-15 | 100 | 100 | 30 | 1470 | 15 | 66 | Jj1-26 | 100 |
| 28 | 100YW100-35-18.5 | 100 | 100 | 35 | 1460 | 18.5 | 65 | JJ1-18.5 | 100 |
| 29 | 125YW130-15-11 | 125 | 130 | 15 | 1460 | 11 | 62 | Jj1-11 | 100 |
| 30 | 125YW130-25-15 | 125 | 130 | 20 | 1440 | 15 | 63 | Jj1-15 | 125 |
| 31 | 150YW145-6-7.5 | 150 | 145 | 6 | 1470 | 7.5 | 63 | qzd7.5 | 125 |
| 32 | 150YW180-15-15 | 150 | 180 | 15 | 1470 | 15 | 65 | Jj1-15 | 150 |
| 33 | 150YW180-20-18.5 | 150 | 180 | 20 | 1470 | 18.5 | 75 | JJ1-18.5 | 150 |
| 34 | 150YW180-25-22 | 150 | 180 | 25 | 1470 | 22 | 76 | Jj1-22 | 150 |
| 35 | 150YW130-30-22 | 150 | 130 | 30 | 1470 | 22 | 75 | Jj1-22 | 150 |
| 36 | 150YW180-30-30 | 150 | 180 | 30 | 970 | 30 | 73 | Jj1-30 | 150 |
| 37 | 150YW200-30-37 | 150 | 200 | 30 | 970 | 37 | 70 | jj1-37 | 150 |
| 38 | 200YW300-7-11 | 200 | 300 | 7 | 1470 | 11 | 73 | Jj1-11 | 150 |
| 39 | 200YW250-11-15 | 200 | 250 | 11 | 1470 | 15 | 74 | Jj1-15 | 200 |
| 40 | 200YW400-10-22 | 200 | 400 | 10 | 1470 | 22 | 76 | Jj1-22 | 200 |
| 41 | 200YW400-13-30 | 200 | 400 | 13 | 1470 | 30 | 73 | Jj1-30 | 200 |
| 42 | 200YW250-11-15 | 200 | 250 | 15 | 1470 | 18.5 | 72 | JJ1-18.5 | 200 |
| 43 | 200YW300-15-22 | 200 | 300 | 15 | 1470 | 22 | 73 | Jj1-22 | 200 |
| 44 | 200YW250-22-30 | 200 | 250 | 22 | 1470 | 30 | 71 | Jj1-30 | 200 |
| 45 | 200YW350-25-37 | 200 | 350 | 25 | 1470 | 37 | 75 | jj1-37 | 200 |
| 46 | 200YW400-30-55 | 200 | 400 | 30 | 1480 | 55 | 70 | Jj1-55 | 200 |
| 47 | 250YW600-9-30 | 250 | 600 | 9 | 980 | 30 | 74 | Jj1-30 | 250 |
| 48 | 250YW600-12-37 | 250 | 600 | 12 | 1480 | 37 | 78 | jj1-37 | 250 |
| 49 | 250YW600-15-45 | 250 | 600 | 15 | 1480 | 45 | 75 | jj1-45 | 250 |
| 50 | 250YW600-20-55 | 250 | 600 | 20 | 1480 | 55 | 73 | Jj1-55 | 250 |
| 51 | 250YW600-25-75 | 250 | 600 | 25 | 1480 | 75 | 73 | jj1-75 | 250 |
| 52 | 300YW800-12-45 | 300 | 800 | 12 | 1480 | 45 | 76 | jj1-45 | 300 |
| 53 | 300YW500-15-45 | 300 | 500 | 15 | 980 | 45 | 70 | jj1-45 | 300 |
| 54 | 300YW800-15-55 | 300 | 800 | 15 | 980 | 55 | 73 | Jj1-55 | 300 |
| 55 | 300YW600-20-55 | 300 | 600 | 20 | 980 | 55 | 75 | Jj1-55 | 300 |
| 56 | 300YW800-20-75 | 300 | 800 | 20 | 980 | 75 | 78 | jj1-75 | 300 |
| 57 | 300YW950-20-90 | 300 | 950 | 20 | 980 | 90 | 80 | jj1-90 | 300 |
| 58 | 300YW1000-25-110 | 300 | 1000 | 25 | 980 | 110 | 82 | jj1-110 | 300 |
| 59 | 300YW1100-10-55 | 300 | 1100 | 10 | 980 | 55 | 84.5 | Jj1-55 | 300 |
| 60 | 350YW1500-15-90 | 350 | 1500 | 15 | 980 | 90 | 83.1 | jj1-90 | 350 |
| 61 | 350YW1200-18-90 | 350 | 1200 | 18 | 980 | 90 | 83.2 | jj1-90 | 350 |
| 62 | 350YW1100-28-132 | 350 | 1100 | 28 | 740 | 132 | 78.5 | jj1-132 | 350 |
| 63 | 350YW1000-36-160 | 350 | 1000 | 36 | 740 | 160 | 82.1 | jj1-160 | 350 |

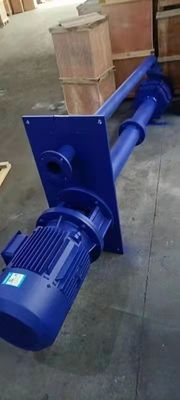

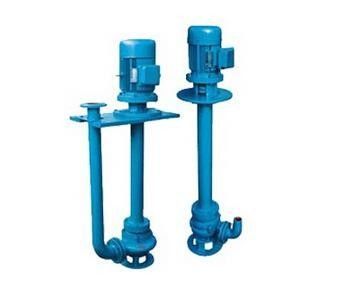

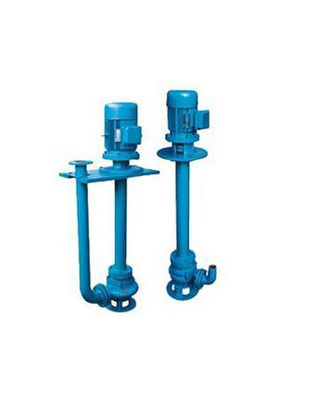

Foto-foto
