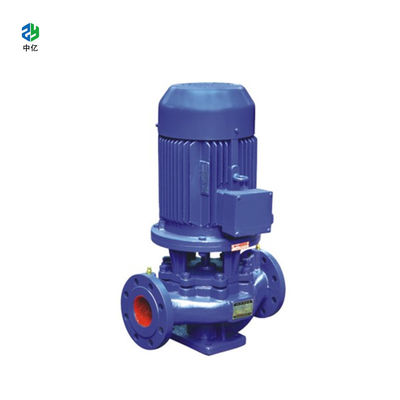

Pompa sentrifugal booster saluran pipa vertikal untuk air
1.Pengantar
ISG/ seri pompa sentrifugal saluran pipa vertikal satu tahap satu sedotan adalah generasi kedua dari produk hemat energi efisiensi tinggi.Ini adalah pengganti yang ideal untuk pompa normal seperti IS dan D pompa sentrifugal multi-tahap.
Rentang aliran adalah 1,5-1600m3/h
Jarak kepala angkat adalah 5-125 meter.
2.Medium transfer
1) air jernih atau cairan lain dengan sifat fisik dan kimia yang sama dengan air jernih.Ini berlaku untuk pasokan air dan drainase industri dan perkotaan,tekanan dan pasokan air untuk sirkulasi air dingin dan panas untuk kamar mandi, fittings untuk peralatan dan sebagainya.
| o. | Model | Aliran ((m3/jam) | Kepala (m) | daya (kW) | Kecepatan ((rpm) |
| 218 | 50 sampai 160 | 6.3 | 8 | 0.75 | 1450 |
| 219 | 50-200 | 6.3 | 12.5 | 0.75 | 1450 |
| 220 | 50-200A | 5.5 | 9.5 | 0.75 | 1450 |
| 221 | 50-250 | 6.3 | 20 | 1.5 | 1450 |
| 222 | 50-250A | 5.6 | 16 | 1.1 | 1450 |
| 223 | 50-125 ((I) | 12.5 | 5 | 0.75 | 1450 |
| 224 | 50-160 ((I) | 12.5 | 8 | 0.75 | 1450 |
| 225 | 50-160 ((I) A | 10.8 | 6 | 0.75 | 1450 |
| 226 | 50-200 ((I) | 12.5 | 12.5 | 1.1 | 1450 |
| 227 | 50-200 ((I) A | 11.3 | 10.1 | 0.75 | 1450 |
| 228 | 50-250 ((I) | 12.5 | 20 | 2.2 | 1450 |
| 229 | 50-250 ((I) A | 11.7 | 17.6 | 1.5 | 1450 |
| 230 | 50-250 ((I) B | 10.2 | 13.4 | 1.1 | 1450 |
| 231 | 50-315 ((I) | 12.5 | 32 | 4 | 1450 |
| 232 | 50-315 ((I) A | 11.7 | 28 | 3 | 1450 |
| 233 | 50-315 ((I) B | 10.2 | 21 | 3 | 1450 |
| 234 | 65 sampai 125 | 12.5 | 5 | 0.75 | 1450 |
| 235 | 65-160 | 12.5 | 8 | 0.75 | 1450 |
| 236 | 65-160A | 10.8 | 6 | 0.75 | 1450 |
| 237 | 65-200 | 12.5 | 12.5 | 1.1 | 1450 |
| 238 | 65-200A | 11.3 | 10.1 | 0.75 | 1450 |
| 239 | 65-250 | 12.5 | 20 | 2.2 | 1450 |
| 240 | 65-250A | 11.7 | 17.6 | 1.5 | 1450 |
| 241 | 65-250B | 10.2 | 13.4 | 1.1 | 1450 |
| 242 | 65-315 | 12.5 | 32 | 4 | 1450 |
| 243 | 65-315A | 11.7 | 28 | 3 | 1450 |
| 244 | 65-315B | 10.1 | 21 | 3 | 1450 |
| 245 | 65-125 ((I) | 25 | 5 | 0.75 | 1450 |
| 246 | 65-160 ((I) | 25 | 8 | 1.1 | 1450 |
| 247 | 65-160 ((I) A | 21.6 | 6 | 0.75 | 1450 |
| 248 | 65-200 ((I) | 25 | 12.5 | 2.2 | 1450 |
| 249 | 65-200 ((I) A | 23.3 | 10.9 | 1.5 | 1450 |
| 250 | 65-250 ((I) | 25 | 20 | 3 | 1450 |
| 251 | 65-250 ((I) A | 22.2 | 15.8 | 2.2 | 1450 |
| 252 | 65-250 ((I) B | 19.8 | 12.6 | 1.5 | 1450 |
| 253 | 65-315 ((I) | 25 | 32 | 5.5 | 1450 |
| 254 | 65-315 ((I) A | 23 | 27.9 | 4 | 1450 |
| 255 | 65-315 ((I) B | 20.2 | 21 | 3 | 1450 |
| 256 | 80-125 | 25 | 5 | 0.75 | 1450 |
| 257 | 80-160 | 25 | 8 | 1.1 | 1450 |
| 258 | 80-160A | 21.6 | 6 | 0.75 | 1450 |
| 259 | 80-200 | 25 | 12.5 | 2.2 | 1450 |
| 260 | 80-200A | 23.3 | 10.9 | 1.5 | 1450 |
| 261 | 80-250 | 25 | 20 | 3 | 1450 |
| 262 | 80-250A | 22.2 | 15.8 | 2.2 | 1450 |
| 263 | 80-250B | 19.8 | 12.6 | 1.5 | 1450 |
| 264 | 80-315 | 25 | 32 | 5.5 | 1450 |
| 265 | 80-315A | 23 | 27.9 | 4 | 1450 |
| 266 | 80-315B | 20.2 | 21 | 3 | 1450 |
| 267 | 80-125 ((I) | 50 | 5 | 1.1 | 1450 |
| 268 | 80-160 ((I) | 50 | 8 | 2.2 | 1450 |
| 269 | 80-160 ((I) A | 44.5 | 6.3 | 1.5 | 1450 |
| 270 | 80-160 ((I) B | 44.5 | 6.3 | 1.5 | 1450 |
| 271 | 80-200 ((I) | 50 | 12.5 | 3 | 1450 |
| 272 | 80-200 ((I) A | 44.6 | 9.9 | 2.2 | 1450 |
| 273 | 80-250 ((I) | 50 | 20 | 5.5 | 1450 |
| 274 | 80-250 ((I) A | 46.7 | 17.4 | 4 | 1450 |
| 275 | 80-250 ((I) B | 40.4 | 13.1 | 3 | 1450 |
| 276 | 80-315 ((I) | 50 | 32 | 11 | 1450 |
| 277 | 80-315 ((I) A | 46.7 | 27.9 | 7.5 | 1450 |
| 278 | 80-315 ((I) B | 40.5 | 21 | 5.5 | 1450 |
| 279 | 100 sampai 125 | 50 | 5 | 1.1 | 1450 |
| 280 | 100 sampai 160 | 50 | 8 | 2.2 | 1450 |
| 281 | 100-160A | 44.5 | 6.3 | 1.5 | 1450 |
| 282 | 100-200 | 50 | 12.5 | 3 | 1450 |
| 283 | 100-200A | 44.6 | 9.9 | 2.2 | 1450 |
| 284 | 100-250 | 50 | 20 | 5.5 | 1450 |
| 285 | 100-250A | 46.7 | 17.6 | 4 | 1450 |
| 286 | 100-250B | 40.4 | 13.1 | 3 | 1450 |
| 287 | 100-315 | 50 | 32 | 11 | 1450 |
| 288 | 100-315A | 46.7 | 27.9 | 7.5 | 1450 |
